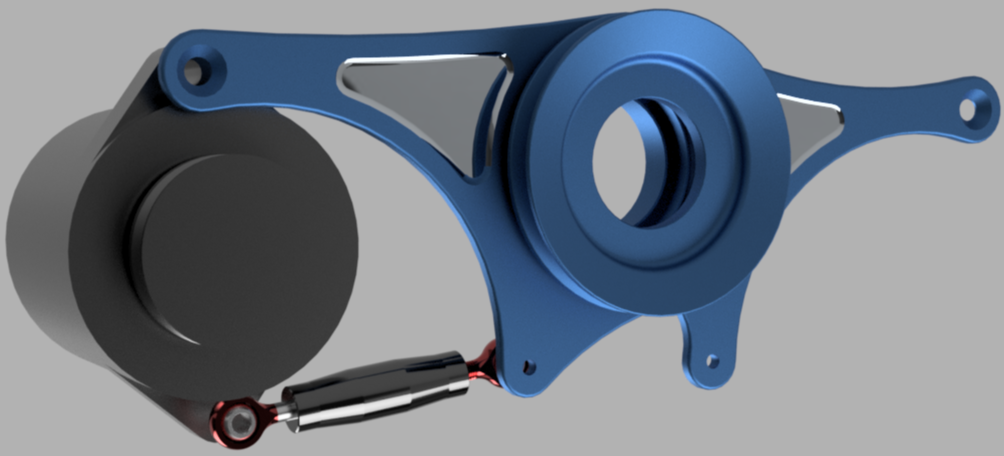

DF1201- JET DRIVE MOUNTED ALTERNATOR KIT

OUR JET DRIVE MOUNTED ALTERNATOR KIT ALLOWS YOU TO CLEAN UP THE FRONT OF THE ENGINE, AND GET THE ALTERNATOR IN A POSITION THAT IS TYPICALLY UNUSED IN A BOAT! WITH THIS KIT YOU CAN USE A SMALL CASE OR A STANDARD CASE ALTERNATOR, THE ONLY REQUIREMENT IS THE LARGE MOUNTING HOLE HAS TO EITHER BE 7/16 OR DRILLED FOR 7/16 AND THE SMALL THREADED HOLE NEEDS TO BE 5/16-18 THREAD.

THE KIT COMES WITH THE BRACKET, TURNBUCKLE, BELT, SPACERS, SHIMS, PULLEY/YOKE, AND THE HARDWARE TO ASSEMBLE IT. EACH KIT COMES WITH A FEW SHIMS AND EXTRA WASHERS TO ALLOW YOU TO SHIM THE BRACKET AND THE ALTERNATOR BACK AND FORTH TO GET THE BELT TO LINE UP JUST RIGHT. THE PULLEY COMES PRESSED ONTO A NEW SPICER YOKE, EITHER 1310 OR 1350. PRESSING THE PULLEY ONTO THE YOKE AND SELLING IT AS AN ASSEMBLY IS HOW WE CAN CONTROL THE FITMENT OF THE BELT AND ENSURE IT WILL BE ABLE TO WORK WITHIN WHAT WE SEND YOU.

THE BRACKET, PULLEY, SPACERS, SHIMS, AND TURNBUCKLE ARE ALL MANUFACTURED IN-HOUSE BY OUR EXPERT STAFF WITH USA SOURCED MATERIALS. AS WITH ALL OF OUR PRODUCTS WE TRY TO MAKE OUR PRODUCTS 100% MADE IN THE USA.

KIT CONTENTS:

1X SPICER YOKE WITH PULLEY PRESSED ON (SINGLE GROOVE OR 2 GROOVE PULLEY DEPENDING ON SELECTION)

1X ALTERNATOR BRACKET

3X .0625" BRACKET SHIMS

1X 5/16 TURNBUCKLE- ASSEMBLED

1X 7/16-14 X 3" STAINLESS FLAT HEAD SCREW

1X 7/16-14 X 2" STAINLESS FLAT HEAD SCREW

1X 5/16-18 X 11/16 STAINLESS SOCKET HEAD CAP SCREW

1X 5/16-18 X 1 STAINLESS SOCKET HEAD CAP SCREW

8X 5/16-1/8 X 2" STAINLESS FLATE HEAD SCREWS

8X 1/2 X 3/4 ALUMINUM SPACERS

1X GATES 27" BELT

1X 7/16-14 STAINLESS NYLON INSERT NUT

8X 7/16 STAINLESS FLAT WASHERS (ALSO USED AS SHIMS FOR THE ALTERNATOR IF NEEDED)

IF VACUUM PUMP BRACKET IS ADDED:

1X 3/8-16 X 1 STAINLESS SHCS

1X 3/8-16 X 1-1/2 STAINLESS SHCS

1X 5/16-18 X 1 STAINLESS SHCS

2X 3/8-16 STAINLESS NYLON INSERT HEX NUTS

2X 3/8 STAINLESS FLAT WASHERS
